ZERO THRESHOLD DRAINS
01 Jul 2015
The Zero Threshold Drains are designed to enable an entirely flat, seamless connection between indoor and outdoor living and entertaining areas.
Creating a seamless connection between indoor and outdoor living and entertaining areas, the Zero Threshold Drain range from Creative Drain Solutions offers two functional designs to suit your drainage needs.
Our Zero Threshold Drains are custom made exclusively from 316 Marine Grade Stainless Steel to suit many types of doors & applications:
- Wheel Chair Access To Main Doorways
- Aged Care Facilities
- Living To Alfresco
- Bedroom To Balconies
- Public Access To Building Foyers
The Zero Threshold Drain consists of an exterior lineal drain with a custom designed, integrated sub-sil which cradles the sliding or bi-fold door or window track to be installed.
The external lineal drain will act as a water barrier between the outdoor and indoor living areas. The sub-sil door tracks will then collect and direct the water or condensation on the interior and exterior of the doors or windows into the external drain.
In addition to providing a seamless integration of your indoor and outdoor areas, the Zero Threshold Drains also offer the following features:
- Manufactured from quality 316 stainless steel to create a strong, durable, and attractive appearance that is made to last.
- The drains are designed with built-in fall so water flows to the discharge point.
Creative Drain Solutions can custom design and make a drain to suit many applications. This goes above and beyond custom lengths and widths and into fundamental design, appearance and functionality of the drain itself. This ensures the drain will fit perfectly with many styles of track systems, while always providing optimum drainage.
A range of stainless steel discharge pipe sizes are available and can be positioned vertically or horizontally for connection to your storm water services.
The Zero Threshold Drain is available in two styles, Lineal Grated Drain or Slot Drain finish.

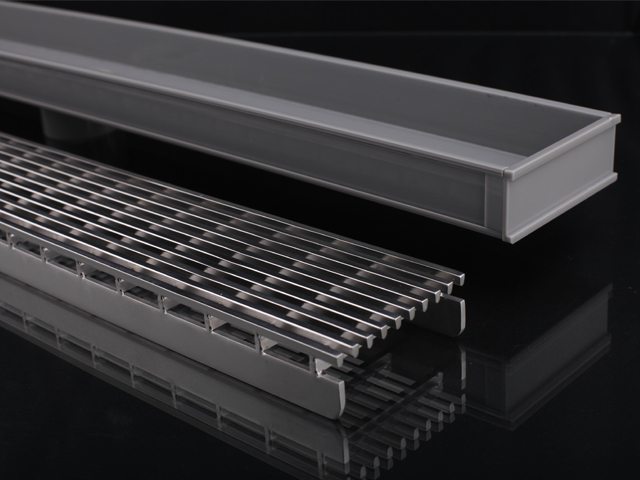

The Zero Threshold Lineal Grated Drain is available in a removable 7 or 9 bar wide format and is custom manufactured to integrate with virtually any door track extrusion, be it timber, PVC or Aluminium.
This system is designed to work in conjunction with the simplest top hung bi-folding doors to complex and intricate four track sliding doors with integrated fly screens.
The Zero Threshold Slot Drain provides a discreet, cost effective alternative to the Grated Drain.
The Slot Drain width can be adjusted to suit your requirements, along with tile lip heights to allow for polished concrete or timber floor finishes. In some cases you can dispense with the sub-sill altogether and incorporate the door track into the drainage channel.
For more information visit www.creativedrainsolutions.com.au
